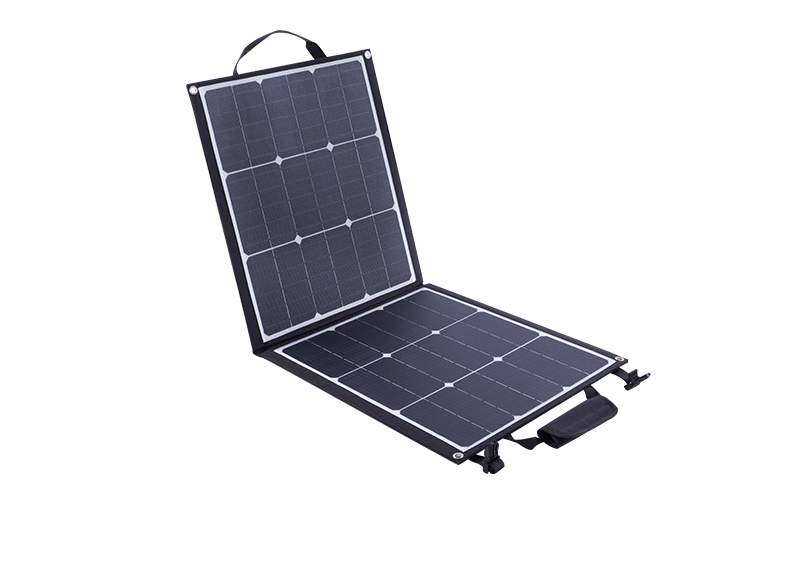

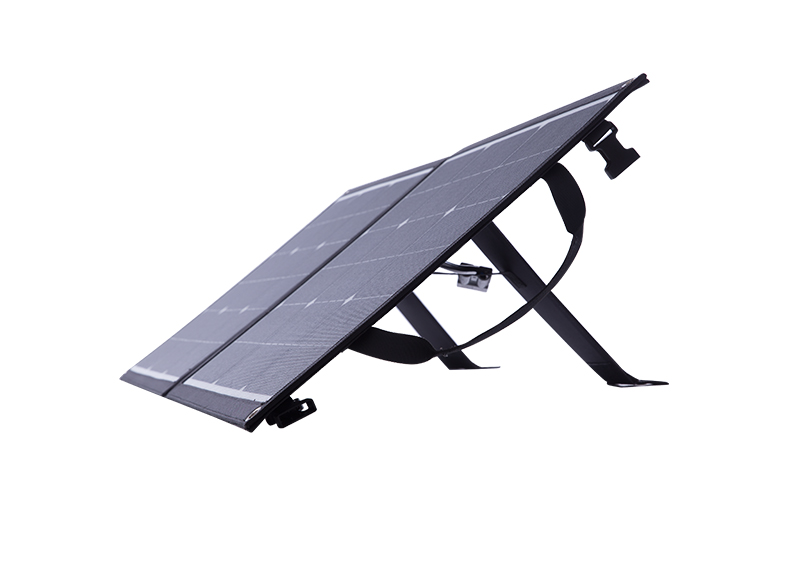

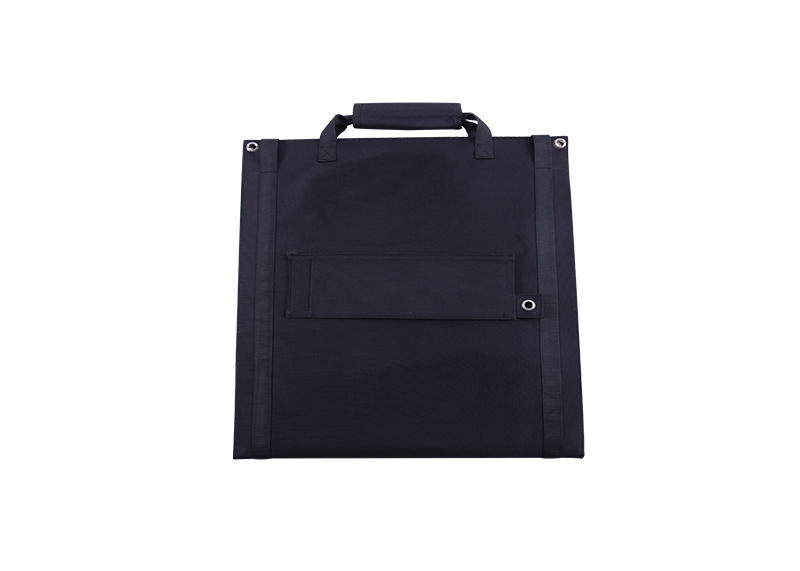

MYGF TWO FOLDS PORTABLE ULTRA LIGHT SOLAR BAG
Model No. | MYGF-F2-65W | MYGF-F2-80W | MYGF-F2-100W |
Component | ECTFE/EVA/Cell/PET/PCB/Sponge/Nylon Fabric/Handle/Plastic Fastener/ZIP | ||
Max power | 65W | 80W | 100W |
Open Circuit Voltage(VOC) | 22.5V | 22.5V | 22.5V |
Short Circuit Current(ISC) | 3.85A | 4.74A | 5.93A |
Max. Power Voltage(Vmp) | 18V | 18V | 18V |
Max. Power Current(Imp) | 3.61A | 4.44A | 5.56A |
Maximum System Voltage | 1000V | 1000V | 1000V |
Power Tolerance | ±3% | ±3% | ±3% |
Dimension Folded(mm) | 530X450X60 | 530x552x60 | 650X560X60 |
Dimension Spreading(mm) | 1050x450x50 | 1032x552x50 | 1120x650x50 |
Controller | PMW/MPPT | PMW/MPPT | PMW/MPPT |
Opertate Temperature Range | -40°C to +85°C | -40°C to +85°C | -40°C to +85°C |
Relative Humidity | 0~100% | 0~100% | 0~100% |
Accessories | |||

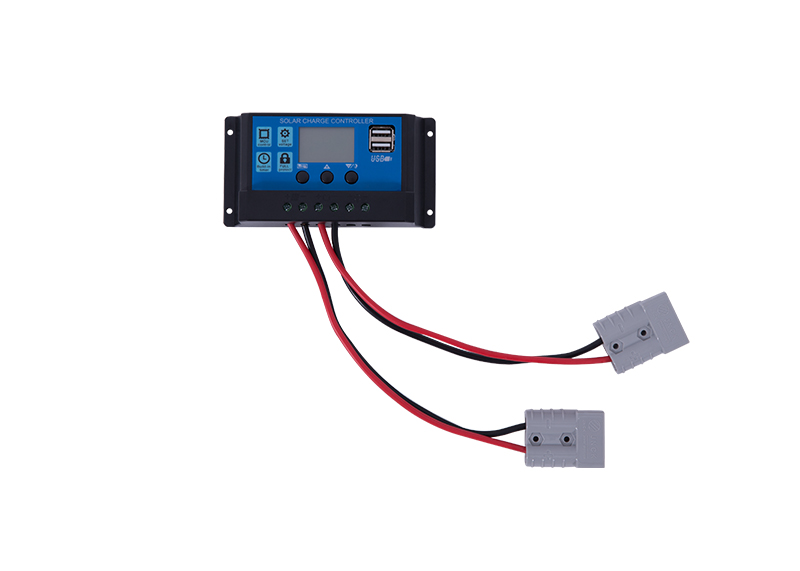

1. PMW Controller X1 | |||

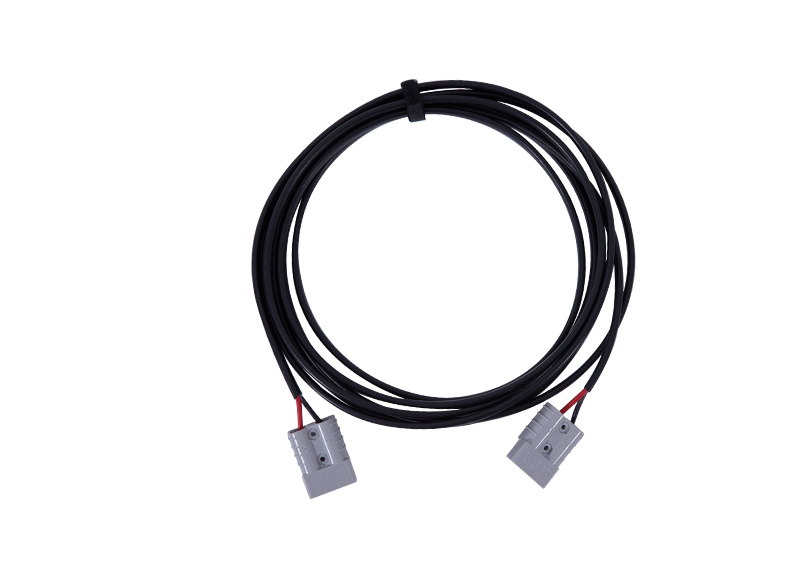

2. 5 Meter with MC4 or Anderson connector X1 | |||

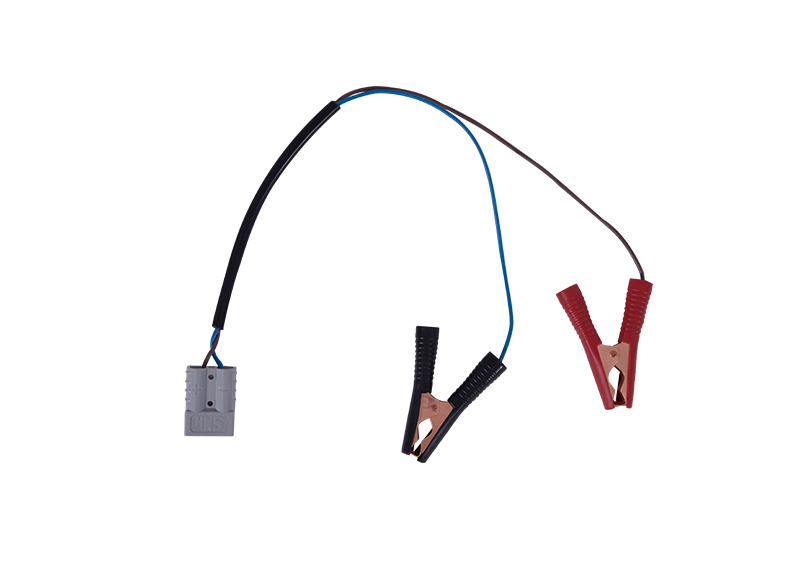

3. 30cm cable of Alligator Clip with Anderson Connector x1 | |||
4. User Manual x1 |
