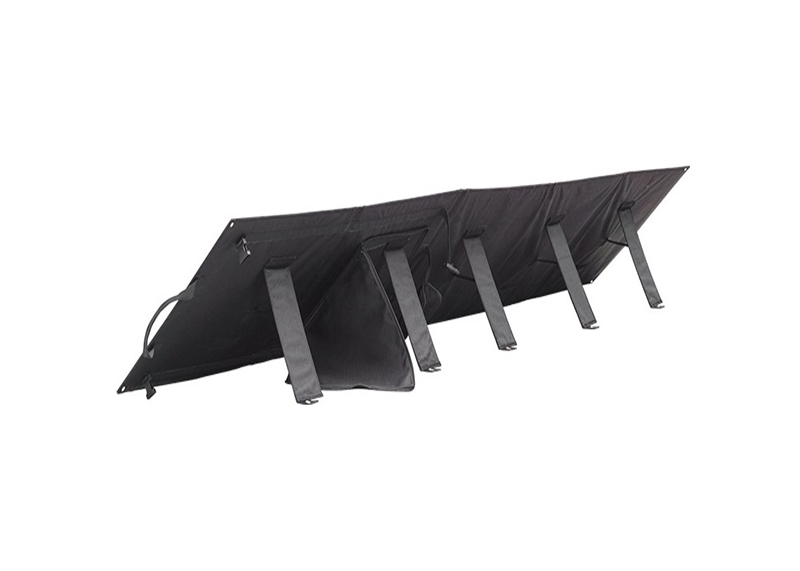

MYGF FIVE FOLDS PORTABLE ULTRA LIGHT SOLAR BAG 200W-250W
Model No. | MYGF-F5-200W | MYGF-F5-250W |
Component | ECTFE/EVA/Cell/PET/PCB/Sponge/Nylon Fabric/Handle/Plastic Fastener/ZIP | |
Max power | 200W | 250W |
Open Circuit Voltage(VOC) | 22.5V | 22.5V |
Short Circuit Current(ISC) | 11.85A | 14.81A |
Max. Power Voltage(Vmp) | 18V | 18V |
Max. Power Current(Imp) | 11.11A | 13.88A |
Maximum System Voltage | 1000V | 1000V |
Power Tolerance | ±3% | ±3% |
Dimension Folded(mm) | 530x552x75 | 650X560X75 |
Dimension Spreading(mm) | 265x552x50 | 2820x650x5 |
Controller | PMW/MPPT | PMW/MPPT |
Opertate Temperature Range | -40°C to +85°C | -40°C to +85°C |
Relative Humidity | 0~100% | 0~100% |
Accessories | ||
1. PMW Controller X1 | ||
2. 5 Meter with MC4 or Anderson connector X1 | ||
3. 30cm cable of Alligator Clip with Anderson Connector x1 | ||
4. User Manual x1 |
